• 3.5mm thick high grade aluminium tracks that are extra wide and 2.5 times thicker and 3 times heavier than conventional ones.
• Extruded double walled profiles.
• High security glass nylon reinforced rivotted wind lock clips.
• Category 3 cyclone rating.
• The strongest extruded shutter and tracks of this profile available in Australia

• Covers a massive 4.5 metres in a single span.
• Rolls into a smaller neater pelmet box than conventional commercial roller shutters.
• Has a high gloss, super smooth, maintenance free, powdercoated attractive finish in a range of colours.
  Sign writers dream to paint.

APPLICATION

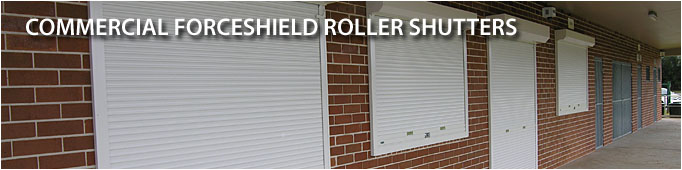

The extruded aluminium 36mm profile is ideally suited to commercial applications such as shopfronts, banks, schools, hospitals, office blocks. It provides the highest security protection against forced entry. Forceshield Commercial is many times stronger than the standard European style 40mm profile used in domestic window shutters

MANUFACTURE
Manufactured in Australia from 6060T5 marine grade aluminium, the profile is then painted in DULUX architectural grade powdercoat giving maximum protection.

TECHNICAL DATA

Pelmet Size	Max Shutter Height (incl roll)	Maximum Shutter Width
137mm	900mm	5000mm
150mm	1250mm	5000mm
165mm	1350mm	5000mm
180mm	1900mm	4500mm
205mm	2400mm	4500mm
250mm	2950mm	4500mm
300mm	3500mm	4000mm

SPECIFICATIONS OF PROFILE Type Extruded & Punched Material Gauge 1.1mm Slat Coverage 36mm Weight 8.5kg/m2 Standard Colours White, Cream, Beige Non standard powdercoat colours by request.

SPECIFICATIONS OF EXTRUDED PROFILE
